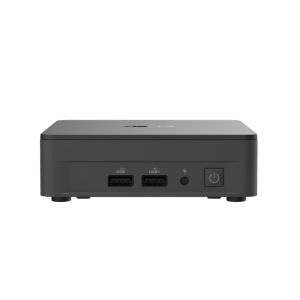

Asus NUC 12 Pro NUC12WSKi7 Barebone System - Mini PC - Intel Core i7 12th Gen i7-1260P Dodeca-core (12 Core) - Intel Chip - 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 2 Total Memory Slots - NVMe, Serial ATA Controller - Intel Iris Xe Graphics Graphic(s) - IEEE 802.11ax - Bluetooth 5.3 - HDMI - Network (RJ-45) - 2 M.2 Interface(s) - 2.5 Gigabit Ethernet - Windows 11 Home, Windows 11 Pro, Windows 10 Home Supported Operating System - 120 W
Built for Business. NUC 12 Pro
Boost business performance with 12th Gen IntelCoreprocessors and the latest features to support productivity, collaboration, and edge compute.
NUC 12 Pro Mini PCs, Kits, &Boards
Ready to work, wherever it's needed-the 4x4 compact device is designed to go where you go, and fit into any space.
Powerful Performance Perfect Fit
Experience the advanced power and performance for edge computing, collaboration, home offices, and more- 12th Gen IntelCoreprocessors deliver it all.
Surprising size. Supercharged performance
Level up your business with the latest technologies.
Mighty performance
With 12th Gen IntelCoreprocessors, NUC 12 Pro Mini PCs, Kits, and Boards deliver the latest in powerful performance for edge computing, collaboration, home offices, and more.
Intel vProplatform
Created for IT professionals, Intel vProEnterprise sets the standard for business: multilayer hardware-based security, efficient remote manageability, business-class performance, and PC fleet stability. Powerful, proven performance for today and tomorrow.
Device Management is built-in
Stay on top of all of your devices. Oversite tools like Application Monitor, Player Failover and Advanced Features make NUC devices easy for admins.
All day, every day
NUC devices are engineered, built, for 24/7 commercial use, perfect for your "always on" needs like digital signage, security systems, and more.
NUC Pro form factors
Available as mini PCs or customizable kits, every device is qualified for 24x7 operation.
NUC 12 Pro Mini PCs
Small PCs and compact workstations, loaded with Windows and ready to use right out of the box. Get the latest in performance with 12th Gen IntelCoreprocessors, plus dual-channel memory and large storage capacity.
NUC 12 Pro Kits
Kits include a range of 12th Gen IntelCoreprocessors, chassis, and board. They are easy to customize with the right operating system, memory, and storage to meet different customer needs.
NUC 12 Pro Boards
Choose NUC boards to create unique integrated or embedded compute solutions.
Specifications
| Card Reader | |
| Dimensions | 117 x 112 x 37 mm (0.48L) |
| Drive Bay | |
| Expansion Slot | |
| Form Factor | NUC 12 PRO |
| Front/Rear Ports | FRONT: 1 x USB 3.2 Gen2 Type-A (with BC1.2, 5V/0.9A, 10Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x Audio Jack (Line out/Mic in/Headphone out) *Side I/O - 1 x Kensington Lock slot REAR: 2 x Thunderboltâ„¢ 4 (5V/3A, 40Gbps) 1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps) 1 x USB 2.0 (5V/0.5A) 2 x HDMI 2.1 (Up to 4K@60Hz) 1 x 2.5G RJ45 LAN 1 x DC-in |
| Graphics | Integrated - Intel® UHD Graphics |
| LAN | 1 x Intel® I225V, 2.5G LAN |
| Memory | 2 x SO-DIMM, DDR4-3200MHz memory, up to 32GB*2 Remark:2x4GB DDR4 3200 for i3/i5 L10 SKUs 2x8GB DDR4 3200 for i7 L10 SKUs |
| Operating System | No O/S |
| Optical Drive | No Optical Drive |
| Power Supply | No Cord - requires AC06C05AU |
| Processor | Intel® Core™ i7-1260P Processor |
| Product Family | Wall Street Canyon |
| Storage Capacity | no HDD |
| Storage Type | 1 x M.2 2280 PCIe Gen4x4, supports 128GB~8TB NVMeâ„¢ SSD 1 x 2.5" SATA 6Gb/s, supports 4TB 7~15mm HDD 1 x M.2 2242 SATA supports 256GB~1TB SSD Remark: 2.5" HDD support on "H" SKUs only. 1x512GB Gen4 NVMe SSD L10 Skus |
| Warranty | 3YR WARRANTY |
| Weight | 0.51KG |
| Wireless | ntel® AX211 (Gig+), Wi-Fi 6E, Bluetooth 5.2, 2*2, vPro support |
